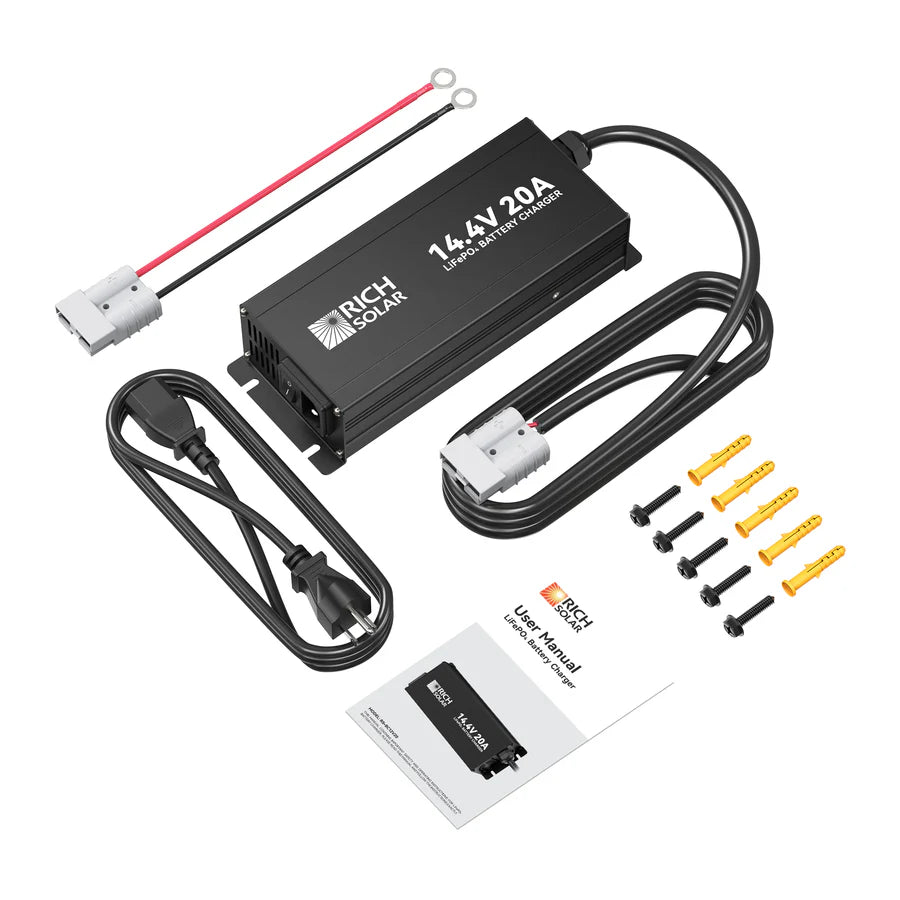

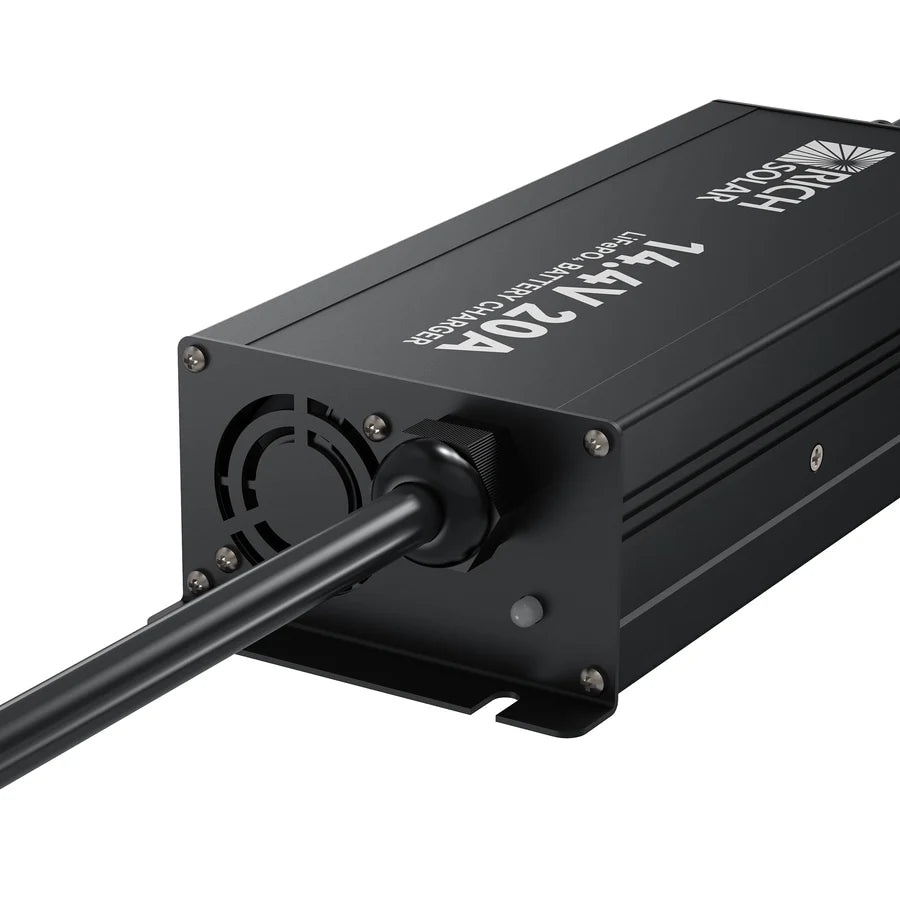

12V(14.6V) 20A | 100-240VAC | 12V LiFePO4 Battery Charger

SKU: RS-BC12V20
Sale price$189.99

Description

Features

  • Outputs 14.4V DC, 20A. Plugs into 100-240V AC
  • Safely jump-starts BMS-protected dead batteries
  • Easy M10 terminals + 50A Anderson connector
  • LED lights indicate standby, charging, full, or error conditions
  • Tough aluminum shell with a quiet, heat-busting fan
  • 3-stage charging: pre-charge, constant current, constant voltage.
  • Packed with protection: over-temperature, reverse polarity, short circuit, and over-voltage

Specifications

  • Input Voltage: 100V to 240V AC; 47Hz to 63Hz
  • Max Input Current: 4A
  • Output Voltage: 14.4V±0.2VDC
  • Output Current: 20A
  • Temperature Range: Operating: -20°C to 40°C / -4°F to 104°F; Storage: -40°C to 70°C / -40°F to 158°F
  • Dimensions: 9.06x3.58x2.07in / 230x91x52.5mm
  • Net Weight: 3.75lb / 1.70kg
