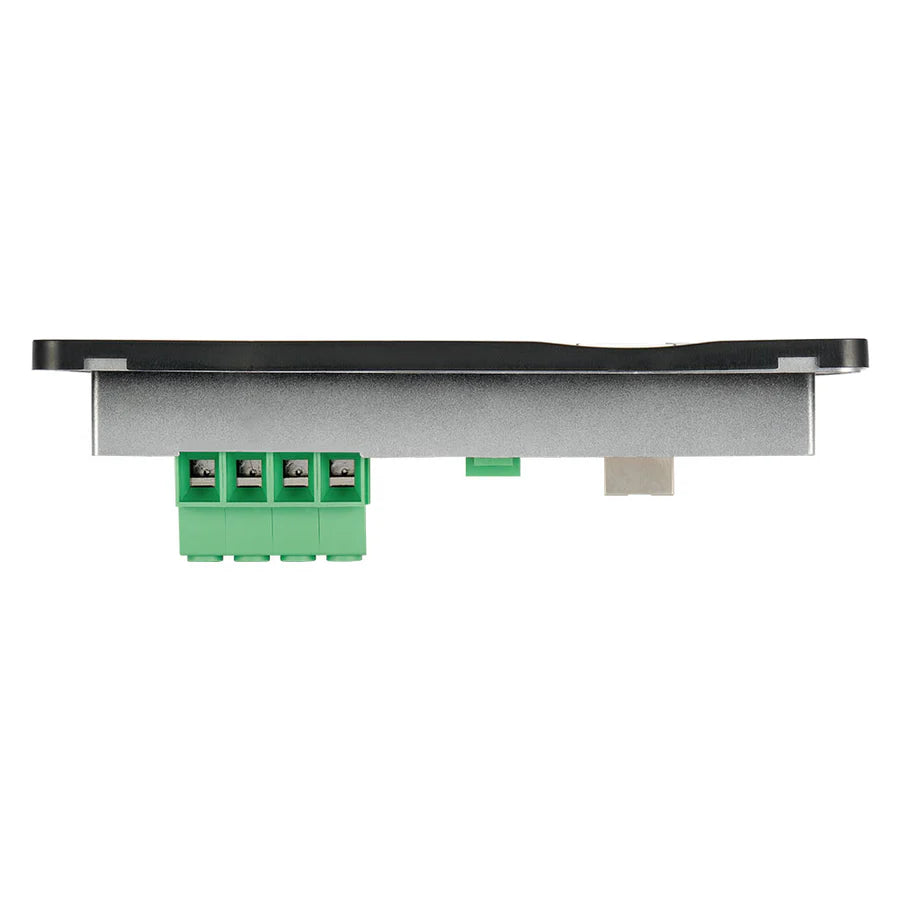

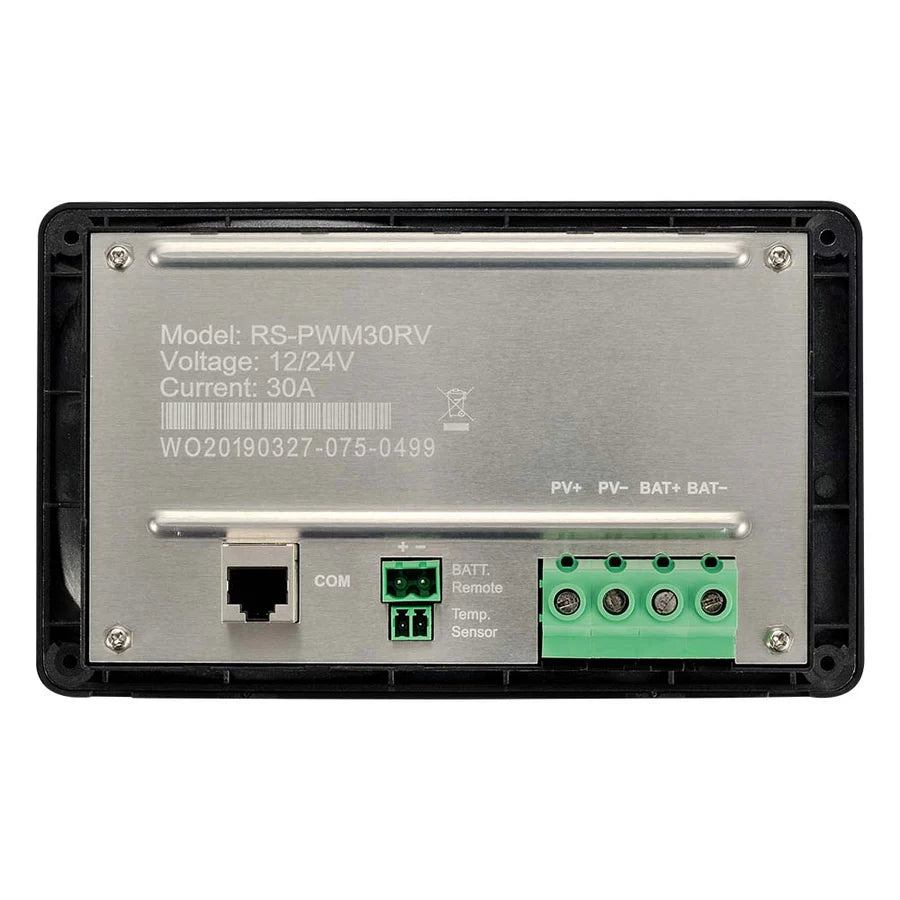

The 30 Amp Flush Mount PWM Solar Charge Controller is a top-rated controller designed to regulate and manage the charging process of your solar panels. It's specifically designed for solar systems with a maximum current capacity of 30 amps, making it suitable for small to medium-sized solar installations.
Features
- Flush mounted and embedded installation design
- High quality and low failure rate components (ST/IR) to ensure the product lifetime
- 3-Stage intelligent PWM charging: Bulk, Boost/Equalize and Float
-
Compatible with lead-acid and lithium batteries①
-
Real-time energy statistics feature
- Battery temperature compensation feature
- Digital LCD monitor for informative display of operational parameters and fault messages
- Voltage drop and temperature compensation sampling interface design
- RS485 communication port with Modbus protocol, and short circuit protection for 5V/200mA power supply
- Multiple communication peripherals
- Rated charging current at working temperature without de-rating
- Extensive electronic protections
- Monitor and set the parameters via PC software or APP
①The Lead-acid battery of User and Lithium battery can be set via the PC software.
Specifications
-
Electrical Specifications
-
Nominal Voltage: 12/24VDC or Auto
-
Battery Input Voltage Range: 8V～32V
-
Rated Charge Current: 30A
-
Max. PV Short Circuit Current: 30A
-
Max. PV Open Circuit Voltage: 50V
-
Battery Type: Lead-acid battery: Sealed(default)/Gel/Flooded/User; Lithium battery: LiFePO4/Li-NiCoMn/User
-
Self-consumption: ≤4.2mA/12V;≤2.6mA/24V
-
Temperature Compensation Coefficient: -3mV/°C/2V(Default)
-
Charge Circuit Voltage Drop: 0.21V
-
Environmental Parameters
-
Storage Temperature Range: -35℃～+70℃
-
Working Environment Temperature: -35℃～+55℃ (100% input and output)
-
Relative Humidity: ≤95%, N.C.
-
Enclosure: IP30
-
Grounding: Common negative
-
Mechanical Parameters
-
Dimension (L×W×H): 178.5×105.5×48.3mm
-
Mounting Dimension: 166.5×93.5mm
-
Mounting Hole Size: Φ5mm
-
Terminal: 16mm²/6AWG
-
Recommended Cable: 10mm²/8AWG
-
Net Weight: 0.31kg
