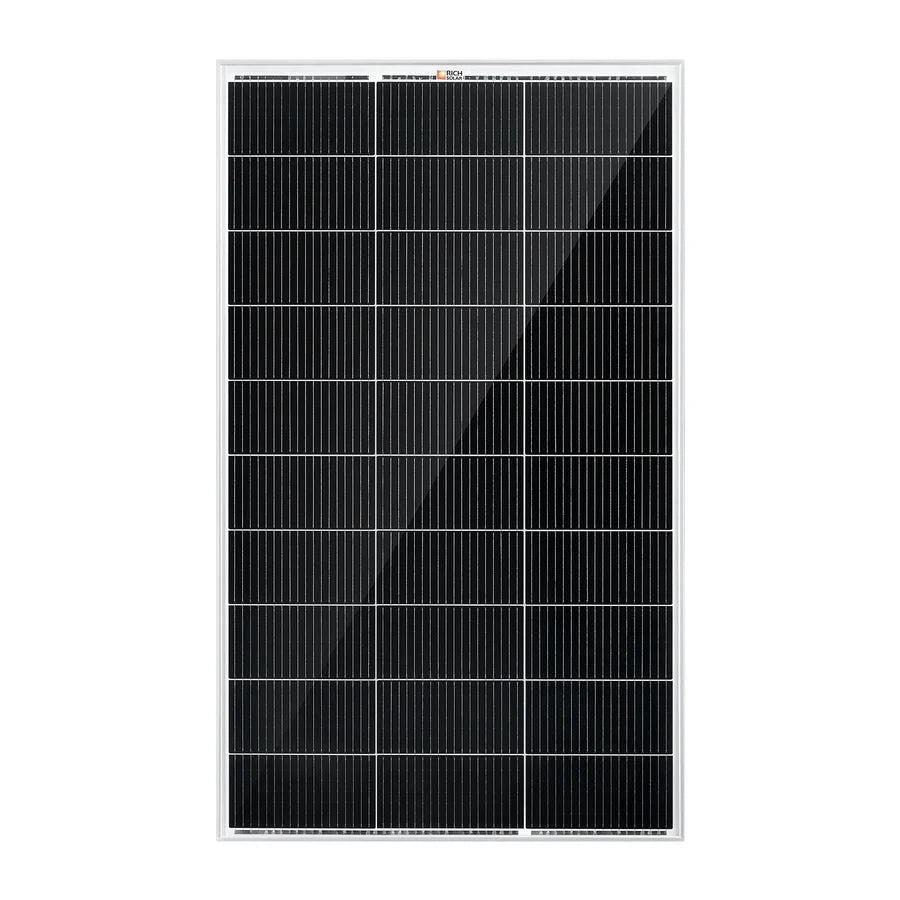

Combining 24.8% high efficiency and a compact design, the MEGA 150 solar panel provides optimized solar energy for any off-grid application. Built with lightweight aluminum anodized frames and an 18-busbar solar cell configuration for durability and high efficiency for optimized performance.
Features
- 18 busbar solar cell configuration
- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug-and-play junction box
- Industry-standard quick-connect cables work in series or parallel
- Certified to withstand challenging environmental conditions
- Excellent low-light performance on cloudy days, mornings, and evenings
Installation
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Compatible with on-grid and off-grid inverters
Built-in Components
- Panel leads (pair): 3 feet each

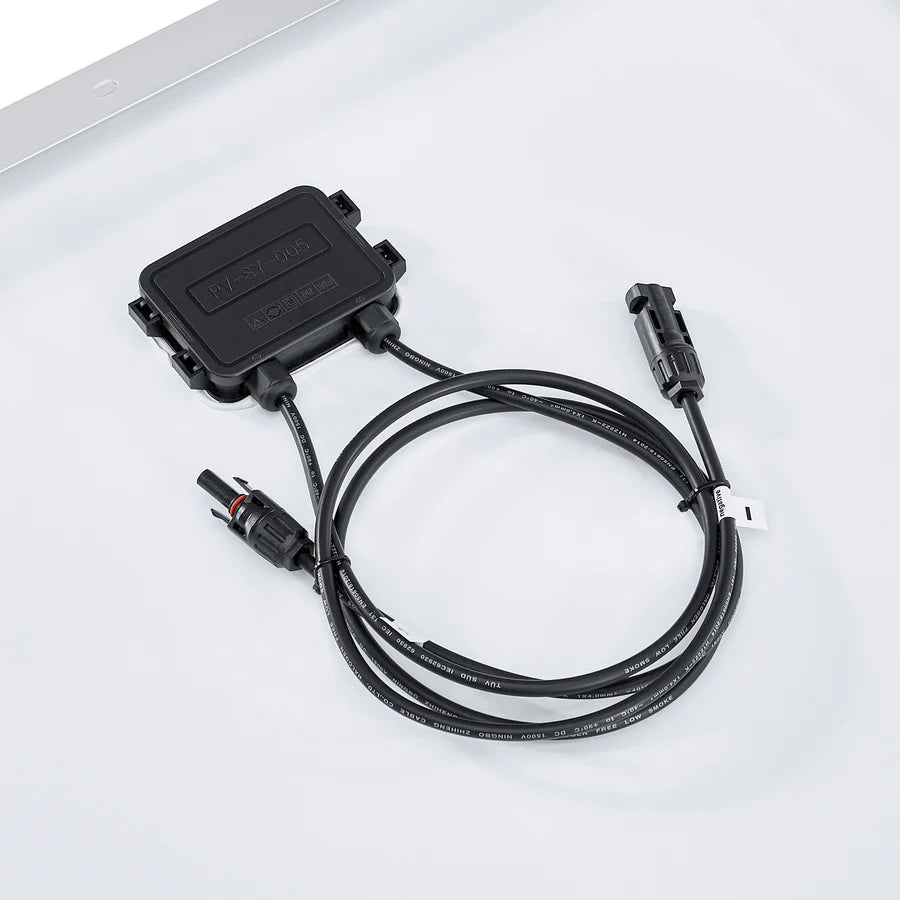

- IP67-rated waterproof junction box
- IP67-rated waterproof solar connectors
- Bypass diodes built into the junction box
Specifications
Product Specifications
-
Model: RS-M150
-
Maximum Power (Pmax): 150 W
-
Maximum Power Voltage (Vmp): 17.5V
-
Maximum Power Current (Imp): 8.57A
-
Open Circuit Voltage (Voc): 21.8V
-
Short Circuit Current (Isc): 8.94A
-
Maximum System Voltage (Vmax): 1000VDC
-
Maximum Series Fuse Rating: 15A
-
Temperature Range: -40 ~ +185°F
-
Weight: 18.1 lb
-
Dimensions: 44.0 x 26.4 x 1.2 in
