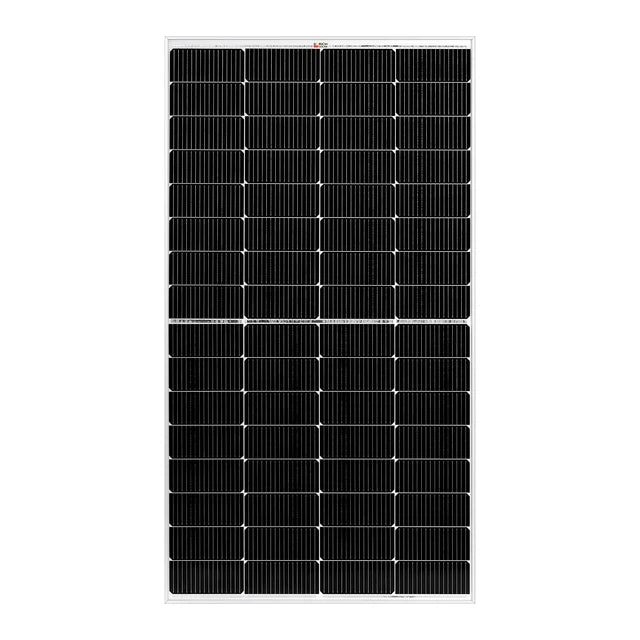

MEGA 220 | 220 Watt Solar Panel

SKU: RS-M220
Sale price$259.99

MEGA 220 | 220 Watt Solar Panel
MEGA 220 | 220 Watt Solar Panel Sale price$259.99

Features

  • 16-busbar solar cell configuration
  • Lightweight, anodized aluminum frame
  • High Transmission, AR (anti-reflective) Coated Tempered Glass
  • Plug-and-play junction box
  • Industry standard quick-connect cables work in series or in parallel
  • Excellent low light performance on cloudy days, mornings and evenings
  • Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection)
  • Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)

Installation

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
  • Compatible with on-grid and off-grid inverters

Warranty

  • 25-year output warranty
  • 10-year workmanship warranty

Built-in Components

  • Panel leads (pair): 3 feet each
  • IP67-rated waterproof junction box
  • IP67-rated waterproof solar connectors
  • Bypass diodes built into the junction box

Specifications

  • Model: RS-M220
  • Maximum Power(Pmax): 220W
  • Maximum Power Voltage(Vmp): 18.3V
  • Maximum Power Current(Imp): 12.0A
  • Open Circuit Voltage(Voc): 22.1V
  • Short Circuit Current(Isc): 12.5A
  • Maximum System Voltage(Vmax): 1500 VDC
  • Temperature Range: -40~ +185℉
  • Weight: 23.7lb (10.7kg)

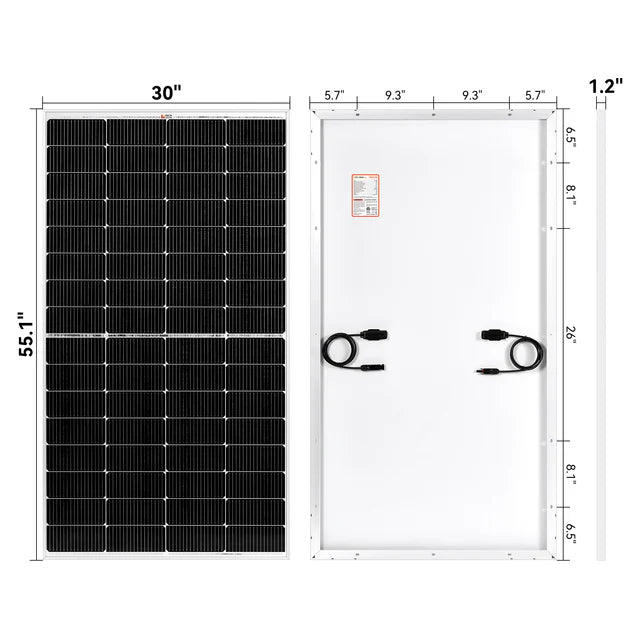

  • Dimensions: 55.1x30.0x1.2in (1400x760x30mm)
