MEGA 50 | 50 Watt Solar Panel | Compact 12V Off-Grid Solar Panel for Boats, Vans, Trailers | 25-Year Output Warranty | UL Certified

SKU: RS-M50
Sale price$69.99

Description

Features

  • 12V off-grid solar panel.
  • 0~+5W guaranteed positive power output.
  • IP67 rated.
  • Built with strong tempered glass and an aluminum frame.
  • Certified to withstand challenging environmental conditions.

Installation

  • Easy installation and handling for various applications.
  • Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts, and tilt mounts.
  • Compatible with on-grid and off-grid inverters.

Warranty

  • 25-year power output warranty
  • 10-year workmanship warranty

Built-in Components

  • Panel Leads (Pair): 12AWG 2FT

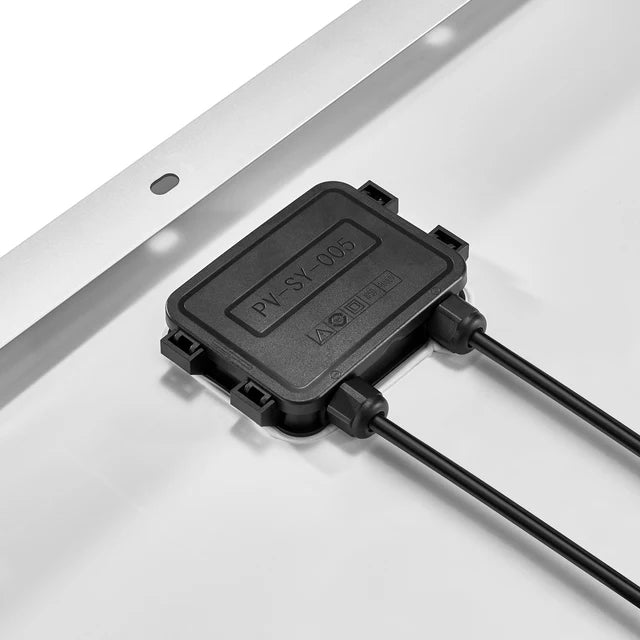

  • IP67-rated waterproof junction box
  • IP67-rated waterproof solar connectors

Specifications

  • Maximum Power(Pmax): 50W
  • Maximum Power Voltage(Vmp): 17.6V
  • Maximum Power Current(Imp): 2.84A
  • Open Circuit Voltage(Voc): 20.8V
  • Short Circuit Current(Isc): 3.13A
  • Maximum System Voltage(Vmax): 1000VDC
  • Maximum Series Fuse Rating: 10A
  • Weight: 8.0 lb

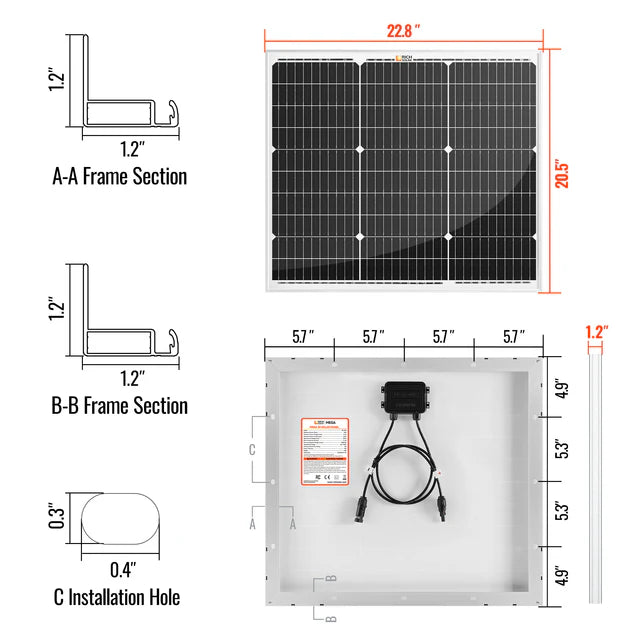

  • Dimensions: 22.8x20.5x1.2 in
