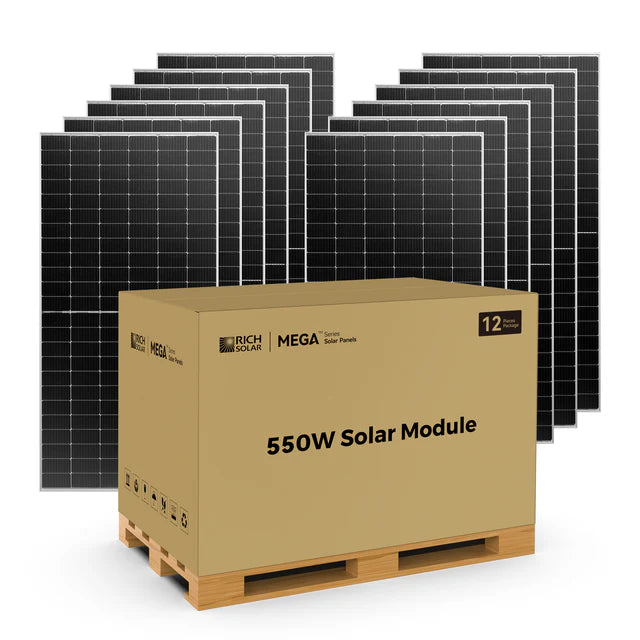

MEGA 550 | 550 Watt Bifacial Solar Panel

Features

• 10-busbar solar cell configuration
• TOPCON technology
• Lightweight anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug-and-play junction box
• Industry-standard quick-connect cables (Solar Connectors) work in series or parallel
• Excellent low-light performance on cloudy days, mornings, and evenings
• Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection)
• Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)

Installation

• Easy installation and handling for various applications (high-end off-grid and mobile applications, on-grid solar systems)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
• Compatible with on-grid and off-grid inverters

Warranty

• 25-year limited power output warranty
• 10-year workmanship warranty

Built-in Components

• Panel leads (pair): 4 feet long each
• IP68-rated waterproof junction box
• IP67-rated waterproof solar connectors
• Bypass diodes built into the junction box

Specifications
