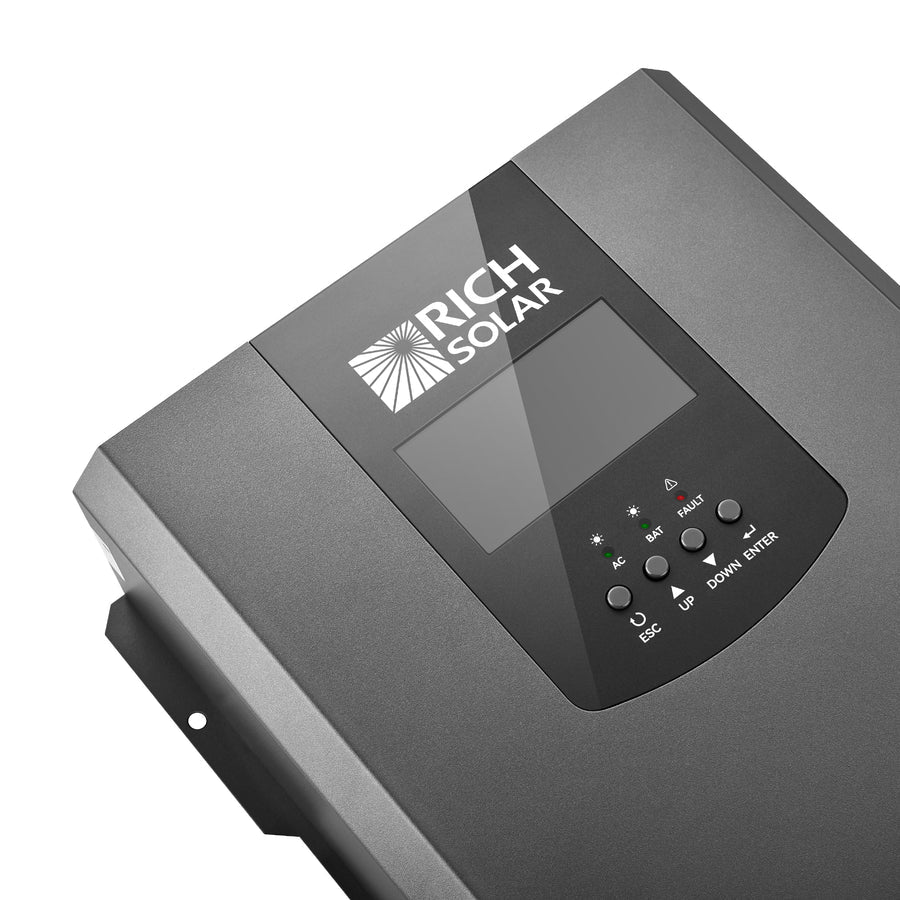

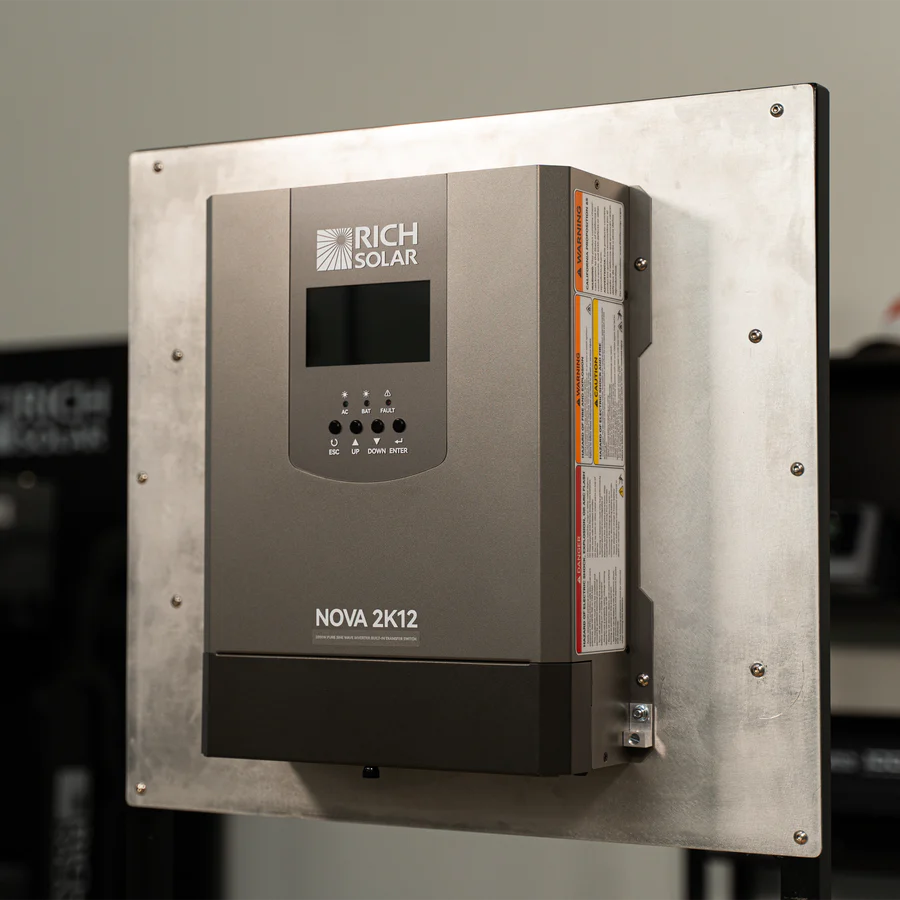

NOVA 2K12 | 2000W 12V Pure Sine Wave Inverter with Built-in Transfer Switch | UL458 Certified for RVs, Campers, Trailers, Vans

• Model: NOVA 2K12
• Rated Output Power: 2000W
• Peak Power: 4000W (5s)
• DC Input Voltage: 12VDC (Max 18V)
• Communication: RS232 / RS485
• Dimension (LxWxH): 14.8x12.0x4.1 in
• Net Weight: 15.9 lb

AC Input

• Nominal Voltage (AC INPUT): 120VAC
• Operation Range: 80-140 VAC full power
• AC Input Frequency: 50/60 Hz selectable
• Frequency Range: 45 ~ 70 Hz

AC Output

• Nominal Voltage (AC OUTPUT): 120VAC
• Voltage Regulation (Batt. Mode): 120VAC ± 5%
• Output Frequency: 50Hz or 60Hz selectable ± 1%
• THD (Batt. Mode): <5%
• Peak Efficiency: 91%
• Waveform: Pure sine wave
• Transfer Time: ≤ 20ms
• Transfer Modes: Normal / Fast

Battery

• Nominal DC Voltage (BATTERY): 12VDC
• DC Input Power Operating Voltage Range: 10-17VDC
• Battery Compatibility: 12V deep-cycle (min. 100Ah), LiFePO4 (with BMS)

Indicators

• Line Mode: Green LED on
• Battery Mode: Amber LED on
• Warning With Output: Red LED flashing
• Fault Without Output: Red LED on

Operating Environment

• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature: -40°F ~ 160°F (-4°F ~ 122°F with full power)

Certificate

• EMC Compliance: UL458 complies with FCC Part 15
