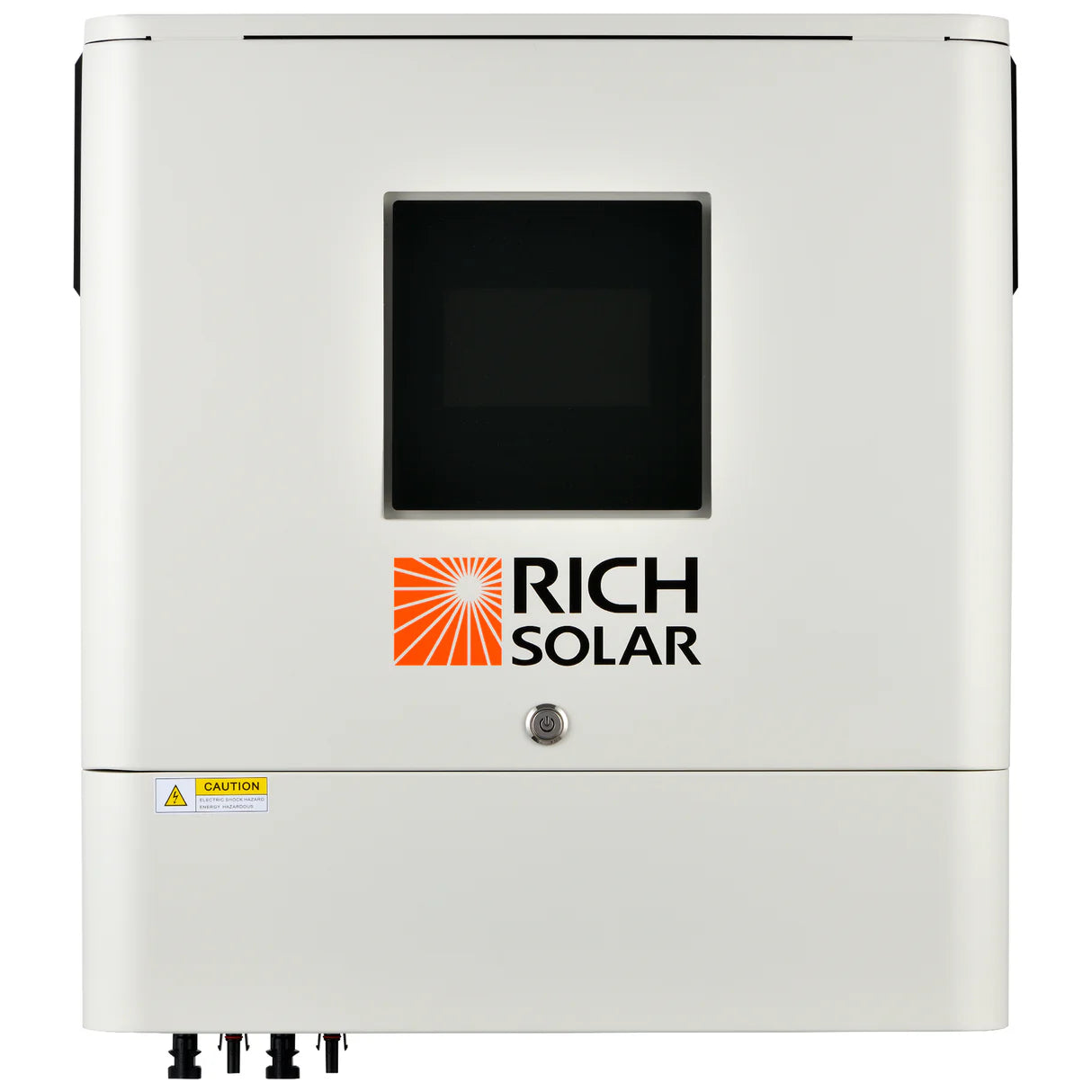

NOVA 6500S | 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter

Features

• UL Certification
• Status indication with RGB lights
• Built-in Wi-Fi for mobile monitoring (Android/iOS)

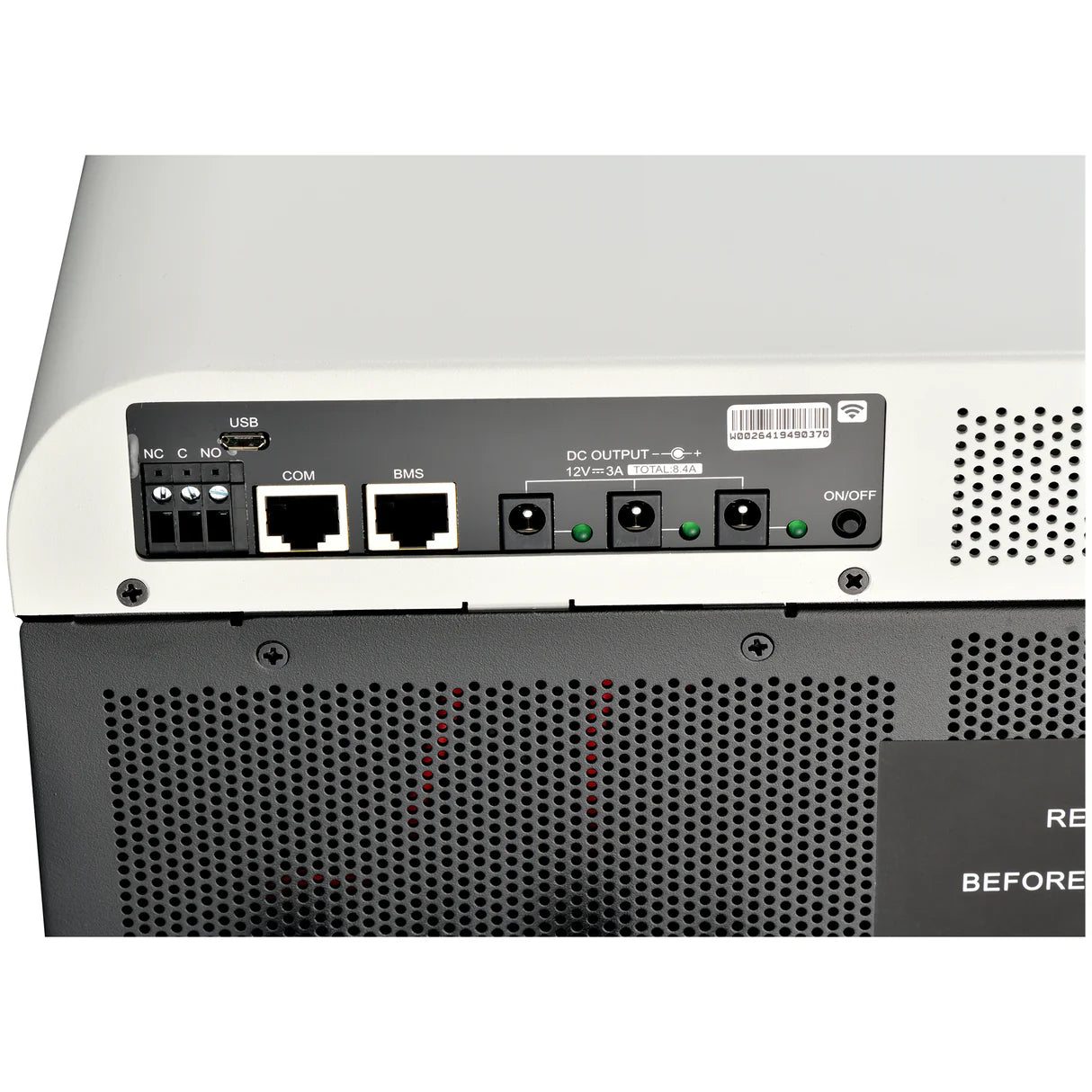

• Supports USB on-the-go function
• Data log events stored in the inverter
• Reserved communication port for BMS (RS485, CAN-BUS or RS232)
• Replaceable fan design for ease of maintenance
• Battery independent design
• Configurable AC/PV output usage timer and prioritization
• Adjustable high-power charging current
• Adjustable input voltage range for home appliances and personal computers
• Compatible with Utility Mains or generator input
• Built-in anti-dust kit
• Optional DC output for DC fan, LED bulb, router, etc.
• 6-unit parallel operation capabilities

Simple Install, Smart Control

The NOVA Series 6500S Inverter provides convenient, smart energy management. With built-in Wi-Fi, you can easily connect with your Android or iOS device using the RICH SOLAR monitoring app for real-time monitoring, electricity usage tracking, and data logging. RGB status lights facilitate monitoring and management while USB On-the-Go enables easy data upload/download.

Powerhouse for Heavy Loads

power high-demand devices with the RICH SOLAR NOVA Series 6500S Inverter. It provides a continuous power of 6500W, reaching a peak of 13kW. This model enables a high output power of up to 39kW, supported by a parallel operation of up to 6 units in single-phase, split-phase, or 3-phase configurations.

Flexibility Without Batteries

The NOVA Series 6500S inverter offers flexibility by making the battery optional. For lighter loads and stable solar panel output, no battery connection is necessary. However, if needed, it is compatible with a range of battery types, including AGM, Pylontech, WECO, Soltaro, LIB-Protocol, and third-party lithium batterie

MPPT Control for Enhanced Performance

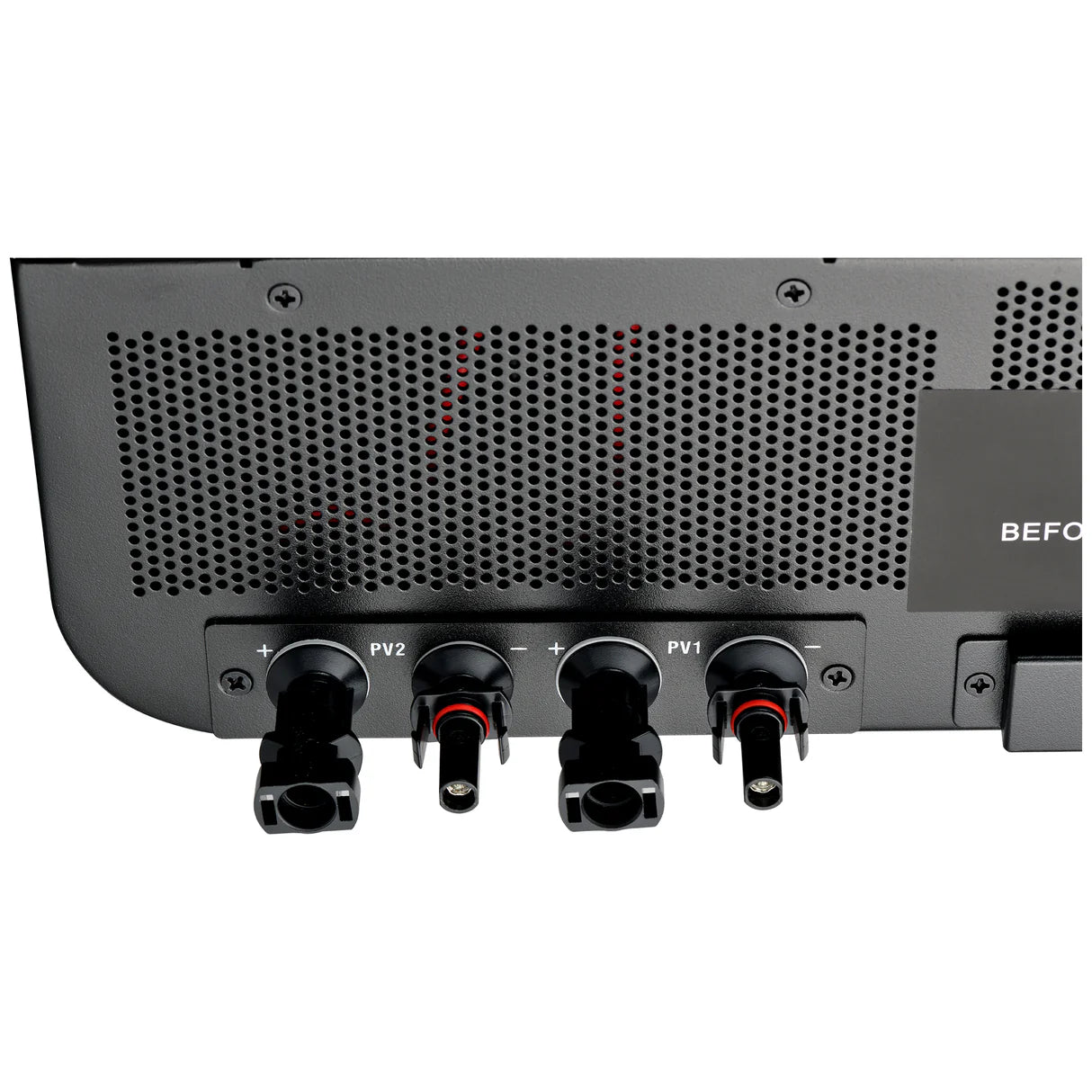

Equipped with an MPPT controller, the solar inverter maximizes efficiency with a wide voltage range of 90-230 VDC, achieving a high peak efficiency of 91% while also protecting batteries for extended lifespan and sustainable performance.

Pure Sine Wave Technology

Pure sine wave output ensures high stability and premium quality to safeguard devices and prolong their lifespan, operating quietly to minimize noise interference.

Multi-Compatible Inverter for Various Devices

The NOVA Series 6500S Solar Inverter's wide input voltage range is compatible with most electronics and appliances (80 - 140 VAC). The inverter also offers high-power charging from 10A to 120A for a wide range of batteries. The optional DC output supports fans, LED bulbs, and routers, making it versatile and efficient.

Three Charging Modes for Versatile Power

Solar First

Solar energy will charge the battery as a priority. If solar isn't available the grid will take over.

Solar & Utility Grid

Solar energy and utility will charge battery at the same time.

Only Solar

Solar energy will be the only charging source, regardless of grid availability.

Three Load Output Working Modes

Utility Grid First

Utility will provide power to the loads as first priority. Solar and battery energy will provide power to the loads only when utility power is not available.

Solar First

Solar energy provides power to the loads as first priority. If solar energy isn't sufficient to power connected loads, the utility grid will supply power to the loads at the same time.

SBU Priority

Solar energy provides power to the loads as first priority. If solar energy is not sufficient to power all connected loads, battery energy will supply power to the loads at the same time. The utility grid provides power to the loads only when the battery voltage drops to a low voltage warning.

Your Safety, Our Priority

Experience safe and reliable operation with the NOVA Series 6500S, featuring multiple protection measures including overload, over-temperature, and short circuit protection. Seamlessly integrate a BMS with the reserved port for enhanced functionality. Operating within a temperature range of 14°F to 122°F, the 6500S Inverter ensures seamless adaptation to diverse climates, guaranteeing year-round efficient and secure performance.

Specifications
